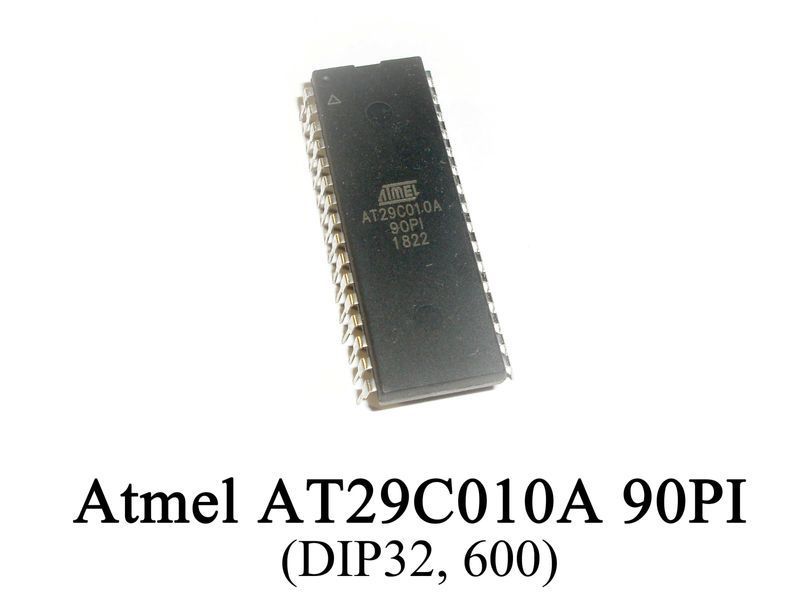

Atmel AT29C010A 90PI (DIP32, 600) микросхема памяти 5V Flash programmable and erasable read only memory (PEROM CMOS Flash Memory
Производитель: Atmel

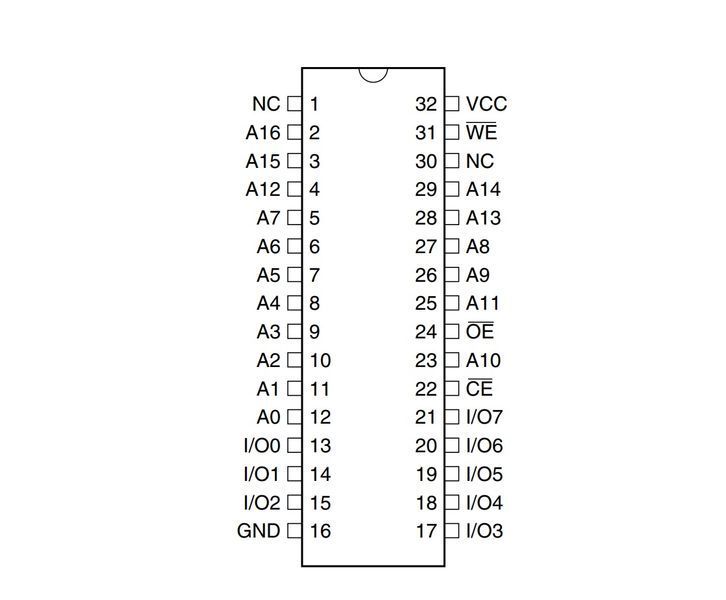

Корпус: PDIP-32
Функциональное описание: CMOS Flash Memory, 1 Megabit (128K x 8), 90nS (128K x 8)
пит.V: 4,5…5,5 V
T°C: -40...+85°C
• Fast Read Access Time – 70 ns
• 5-volt Only Reprogramming
• Sector Program Operation
– Single Cycle Reprogram (Erase and Program)
– 1024 Sectors (128 Bytes/sector)
– Internal Address and Data Latches for 128 Bytes
• Two 8K Bytes Boot Blocks with Lockout
• Internal Program Control and Timer
• Hardware and Software Data Protection
• Fast Sector Program Cycle Time – 10 ms
• DATA Polling for End of Program Detection
• Low Power Dissipation
– 50 mA Active Current
– 100 µA CMOS Standby Current
• Typical Endurance > 10,000 Cycles
• Single 5V ± 10% Supply
• CMOS and TTL Compatible Inputs and Outputs
• Commercial and Industrial Temperature Ranges
Цена указана за 1 шт
